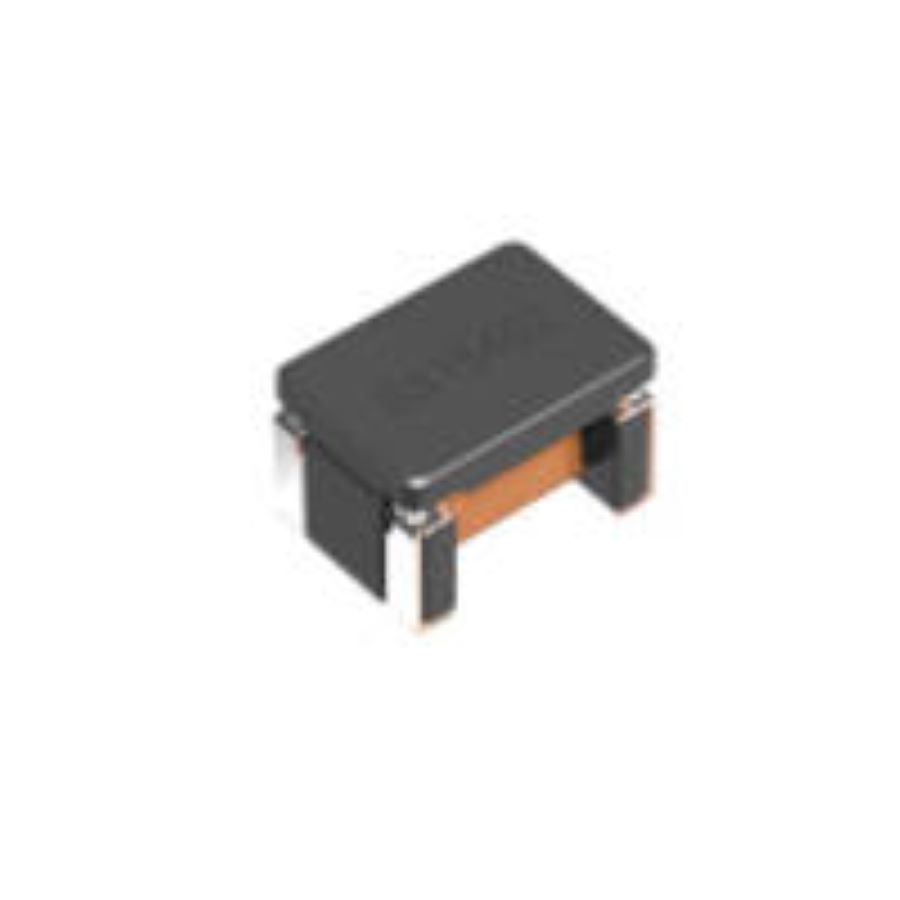

ACT45C-510-2P-TL000
Manufacturer:
TDK Corporation
Mfr.Part #:
ACT45C-510-2P-TL000
Datasheet:
Description:
Common Mode Chokes SMD/SMT Max Current Rating:200 mA Number of Lines:2 2.8 kΩ 1 Ω 51 µH
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 50 V |
| Length | 5.9 mm |
| Width | 3.4 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Composition(Kit Type) | Wirewound |
| Height | 3 mm |
| Packaging | Reel |
| RoHS | Compliant |
| Impedance | 2.8 kΩ |
| DC Resistance (DCR) | 1 Ω |
| Max Current Rating | 200 mA |
| Test Frequency | 100 kHz |
| Number of Lines | 2 |
| Inductance | 51 µH |
| RMS Current (Irms) | 200 mA |
| Series Resistance | 1 Ω |
Stock: 1357
Distributors
pcbx
pcbxUnit Price$0.26323
Ext.Price$0.26323
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.26323 | $0.26323 |
| 10 | $0.23358 | $2.33580 |
| 50 | $0.20726 | $10.36300 |
| 100 | $0.17918 | $17.91800 |
| 500 | $0.15491 | $77.45500 |
| 1000 | $0.14791 | $147.91000 |
| 3000 | $0.14123 | $423.69000 |
| 5000 | $0.13485 | $674.25000 |
